Resumen de caracterísiticas

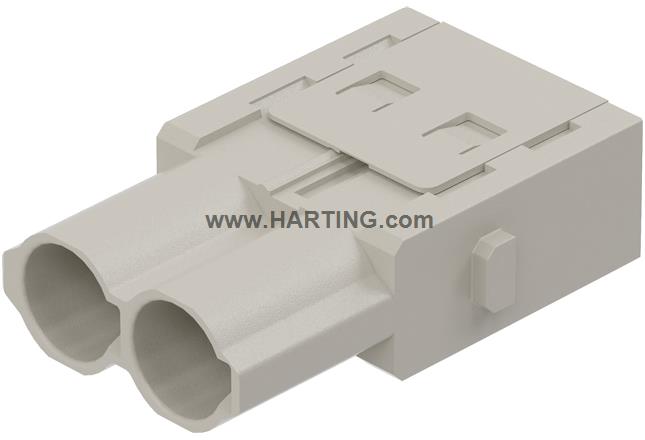

Módulo Han ® 70 A
Módulo sencillo
Terminación de engaste
Macho
Contactos: 2
Sección de conductor: 6 ... 25 mm²
Corriente nominal: 70 A
Policarbonato (PC)
RAL 7032 (gris guijarro)
Detalles del producto
Identification
- Category Modules
- Series Han-Modular®
- Type of module Han® 70 A module
- Size of the module Single module
Version
- Termination method Crimp termination
- Gender Male
- Number of contacts 2
- Details Please order crimp contacts separately.
Technical characteristics
- Conductor cross-section 6 ... 25 mm²
- Wire outer diameter ≤11.5 mm
- Rated current 70 A
- Rated voltage 1,500 V
- Rated impulse voltage 8 kV
- Pollution degree 3
- Insulation resistance >1010 Ω
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polycarbonate (PC)
- Colour (insert) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 2
- Net weight 10.884 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140479449
- eCl@ss 27440217 Module for industrial connectors (power/signals)
- ETIM EC000438
- UNSPSC 24.0 39121552
