Resumen de caracterísiticas

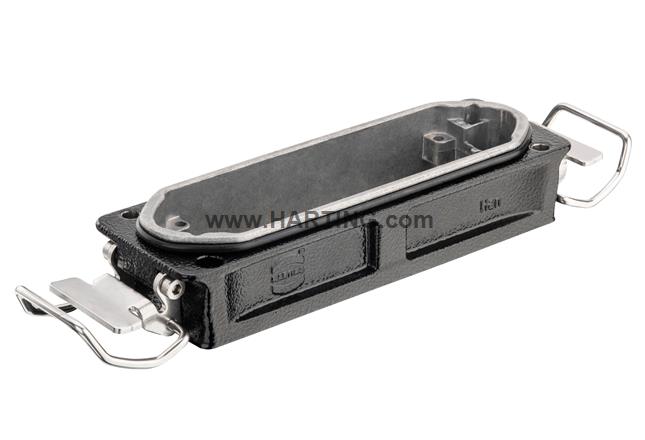

Base montaje tipo pasamuros
Tamaño: 24 B
Construcción baja
Enclave doble
Material (capota/base): Fundición de aluminio, Resistente a la corrosión
Recubierto de polvo
RAL 9005 (negro intenso)
Material (junta): NBR
Detalles del producto
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® HPR Compact
- Type of hood/housing Bulkhead mounted housing
- Type Low construction
Version
- Size 24 B
- Locking type Double locking lever
- Field of application Hoods/housings for harsh outdoor environments
Technical characteristics
- Tightening torque 3 Nm Fixing screws M6
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
-
Degree of protection acc. to IEC 60529
IP65IP68IP6K9K acc. to ISO 20653
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
-
Material (hood/housing)
Aluminium die-castCorrosion resistant
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 9005 (jet black)
- Material (seal) NBR
- RoHS compliant
- ELV status 符合
- China RoHS e
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 不包含
- California Proposition 65 substances 不包含
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 210 g
- European customs tariff number 85389099
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
