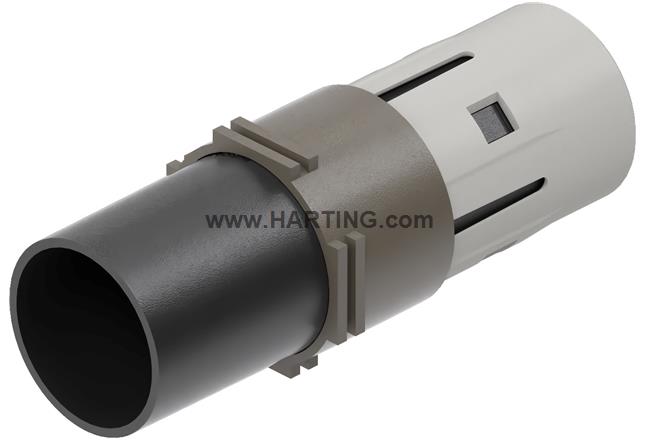

Resumen de caracterísiticas
Aislantes
Terminación de engaste
Macho
Poliamida (PA), Policarbonato (PC)
Negro
Corriente nominal: 800 A
Sección de conductor: 95 ... 185 mm²
Detalles del producto
Identification
- Category Inserts
- Series Han® HC Modular
- Identification 800
Version
- Termination method Crimp termination
- Gender Male
-
Details
Please ensure to hold up the contact with a wrench size 24 to apply the tightening torquePlease order crimp contacts separately.
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 95 ... 185 mm²
- Rated current 800 A
- Rated voltage 3,600 V
- Pollution degree 3
- Insulation resistance >1010 Ω
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 1B acc. to IEC 61373
- Shock resistance Category 1B acc. to IEC 61373
Material properties
-
Material (insert)
Polyamide (PA)Polycarbonate (PC)
- Colour (insert) Black
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
- Specifications EN 45545-2 Fire protection on railway vehicles
Commercial data
- Packaging size 1
- Net weight 105.35 g
- Country of origin China
- European customs tariff number 85389099
- eCl@ss 27440205 Contact insert for industrial connectors
- UNSPSC 24.0 39121522
