Resumen de caracterísiticas
Switches Ethernet industriales
No gestionado
Fast Ethernet
Tensión nominal: 24, 48
Número total de puertos: 8
10/100 Mbit/s (M12D-Ports): 8 x
Temperatura de trabajo: -40 ... +70 °C
Detalles del producto
Identification

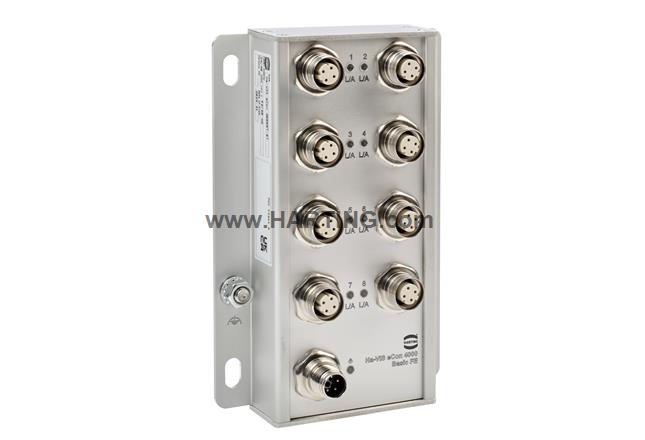

- Series Ha-VIS eCon 4000
- Element Industrial Ethernet Switches
- Specification Unmanaged
- Type of Ethernet Fast Ethernet
Version
- Total number of ports 8
- Fixing Wall mounting
- Switching technology Store and Forward
- Frame size 2.048 kB
- MAC table size 2k Entries
- Packet buffer size 0.77 Megabit
- Non blocking Yes
- Quality of service Yes
- Energie Efficient Ethernet Yes
- Flow control Off
- Signal contact No
- PoE functionality No
- Conformal coating of PCB Yes
- Pack contents Assembly instructions
Termination data
-
Nominal voltage
24 V DC48 V DC
- Permissible voltage 12 ... 60 V DC
- Surge protection ja
-
Operating current
52 mA @ 24 V DC28 mA @ 48 V DC
- Supply circuit SELV (Circuit Breaker 10 A)
-
Starting current
14 A @ 24 V DC2,9 A @ 48 V DC
- Overcurrent protection 2 A am Eingang
- Power consumption ≤1,3 W @ 24 V DC
- Termination method M12 L-Kodierung
- Number of contacts 4
- Conductor cross-section 0,5 ... 2,5 mm²
- Conductor cross-section AWG 20 ... AWG 14
- Pinout + / - / - / +
- Reverse polarity proof ja
Technical characteristics
- Overvoltage category II (Schutz durch doppelte oder verstärkte Isolierung)
- Operating temperature -40 ... +70 °C
- Storage temperature -40 ... +85 °C
-
Relative humidity
10 ... 95 % nicht kondensierend (Betrieb)10 ... 95 % nicht kondensierend (Lagerung/Transport)
- Air pressure ≥795 hPa ≈ 2000 m
- Degree of protection acc. to IEC 60529 IP40 im gesteckten Zustand
Ethernet ports copper
- 10/100 Mbit/s (M12D-Ports) 8 x
-
Transmission standard
10BASE-T100BASE-TX
- Auto-negotiation Yes
- Auto-polarity Yes
- Auto-MDI(X) Yes
- Transmission physics Twisted Pair Cat. 5
-
Data rate
10 Mbit/s 100 Mbit/s
- Transmission length 100 m
Material properties
- Material (hood/housing) Aluminium
- Length 152 mm
- Width 100 mm
- Height 43,85 mm
- RoHS konform mit Ausnahme
- RoHS exemptions 6c.: Kupferlegierung mit einem Massenanteil von bis zu 4 % Blei
- ELV status konform mit Ausnahme
- China RoHS 50
- REACH Annex XVII substances nicht enthalten
- REACH ANNEX XIV substances nicht enthalten
- REACH SVHC substances ja
- REACH SVHC substances Blei
- ECHA SCIP number bbcc04b5-5176-4454-afbc-a635daae5e7b
- California Proposition 65 substances ja
- California Proposition 65 substances Blei
Specifications and approvals
-
Specifications
EN 50155 BahnanwendungenEN 50121-3-2 Bahnanwendungen EMVEN 61000-6-2 EMV-StörfestigkeitEN 55035 EMV-StörfestigkeitEN 61000-4-2 Elektrostatische Entladung (ESD)EN 61000-4-3 Elektromagnetisches FeldEN 61000-4-4 Schnelle Transienten (burst)EN 61000-4-5 Überspannung (surge)EN 61000-4-6 leitungsgeführte StörgrößenEN 61000-6-4 StöraussendungEN 55032 StöraussendungIEC 60721-3 Mechanische StabilitätIEC 60068-2-6 Schwingen (sinusförmig)IEC 60068-2-27 SchockenIEEE 802.3
-
Approvals
CEUN ECE R10
- FCC ja
Commercial data
- Packaging size 1
- Net weight 415 g
- Country of origin Germany
- European customs tariff number 85176200
- eCl@ss 19170130 Network switch (general application)
- ETIM EC000734
- UNSPSC 24.0 43222612
