Resumen de caracterísiticas

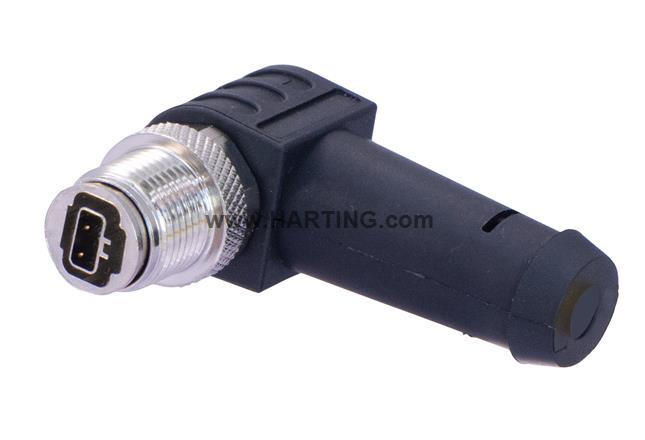

Conector de cable
Acodado 180°
Macho
Corriente nominal: 4 A
PA66
Contactos: 2
Aleación de cobre (CuSn)
Chapado en oro (Cu/Au)
Detalles del producto
Identification
- Category Connectors
-
Series
HARTING T1 IndustrialCircular connectors M12
- Element Cable connector
- Specification 180° angled
Version
- Gender Male
- Shielding Shielded
- Number of contacts 2
- Locking type Screw locking
Technical characteristics
- Conductor cross-section [AWG] AWG 22
- Wire outer diameter 1.8 mm
- Rated current 4 A
- Rated voltage 63 V DC
- Pollution degree 3
- Transmission characteristics 600 MHz Bandwidth
- Data rate 1 Gbit/s
- Insulation resistance >500 MΩ
- Contact resistance ≤ 20 mΩ
- Shielding resistance ≤ 100 mΩ
- Tightening torque 1 Nm
- Wrench size (knurled screw / knurled nut) 13
-
Limiting temperature
-40 ... +90 °C IP65-30 ... +90 °C IP67
- Relative humidity 93 % (40°C)
- Mating cycles ≥ 100
-
Degree of protection acc. to IEC 60529
IP65IP67
- Cable diameter 5.2 mm ± 0.2 mm
- Isolation group II
Material properties
- Material (insert) PA66
- Material (contacts) Copper alloy (CuSn)
- Surface (contacts) Gold plated (Cu/Au)
- Material (hood/housing) Thermoplastic polyurethane (TPU)
- Colour (hood/housing) Black
Specifications and approvals
-
Specifications
IEC 63171-6IEEE 802.3bu (remote power supply over PoDL = Power over Data Line)IEEE 802.3cg (10BASE-T1)IEEE 802.3bw (100BASE-T1)IEEE 802.3bp (1000BASE-T1)
Commercial data
- Packaging size 1
- eCl@ss 27460202 PCB connector (conductor connection)
