Resumen de caracterísiticas

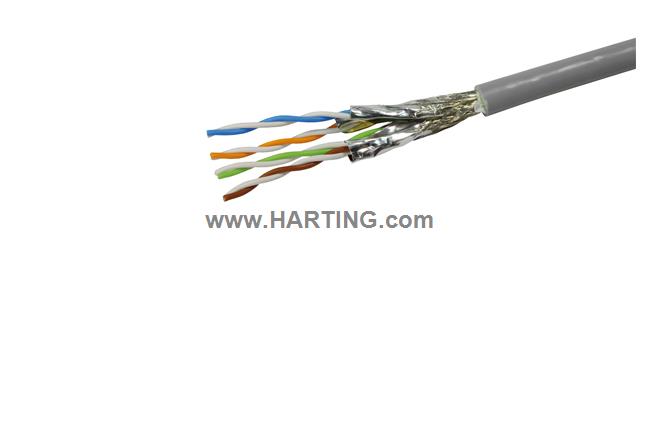

Copper cable (round)
Flame retardant, Oil resistant, Halogen-free, UV resistant
4x 2x AWG 26/7
PUR (polyurethane)
Cat. 6A Class EA up to 500 MHz
Detalles del producto
Identification
- Category System cabling
- Element Bulk cables
- Specification Not assembled
- Type of cable Copper cable (round)
-
Description of the cable
Flame retardantOil resistantHalogen-freeUV resistant
Version
- Number of cores 8
- Core structure 4x 2x AWG 26/7
Technical characteristics
- Rated voltage 100 V
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Loop resistance 290 Ω/km
- Limiting temperature -40 ... +80 °C
-
Minimum bending radius
10x Cable diameter (repeated bending)5x Cable diameter (singular bending)
- Test voltage Ur.m.s. 0.7 kV
- Insulation resistance @ 20 °C ≥ 500 MΩ x km
- Signal run time @ 20 °C ≤ 5.13 ns/m
Material properties
- Material (cable) PUR (polyurethane)
- Colour (cable) Grey
Specifications and approvals
-
Specifications
EN 13602EN 50290-2-23F45052-F5100IEC 60332-1-2 Flame retardancyEN 60811-404 Oil resistanceUL 1581UL style 21815 (80°C / 300 V)
Commercial data
- Packaging size 1,000
- Net weight 46 g/m
- Country of origin Germany
- European customs tariff number 85444290
- GTIN 5713140570870
- ETIM EC003249
- eCl@ss 27061801 Data and communication cable (copper)
