Resumen de caracterísiticas

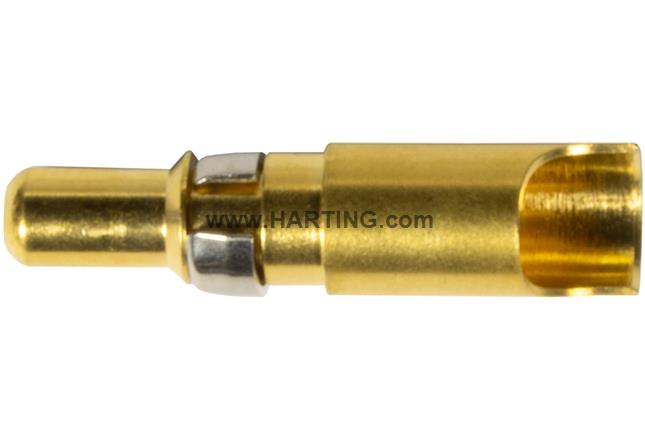

Contacto de soldadura
Recto
Corriente nominal: ≤40 A
Macho
Aleación de cobre
Metal noble sobre Ni
Sección de conductor: 4 ... 6 mm²
AWG 10 ... AWG 8
Detalles del producto
Identification
- Category Contacts
- Series D-Sub
- Identification Mixed
- Type of contact Solder contact
- Description of the contact Straight
Version
- Termination method Lötanschluss
- Termination method Lötanschluss
- Gender Stift
- Manufacturing process gedrehte Kontakte
Technical characteristics
- Conductor cross-section (mm²) 4 ... 6 mm²
- Conductor cross-section (AWG) AWG 10 ... AWG 8
- Rated current ≤ 40 A
- Contact resistance ≤ 1 mΩ
- Stripping length 7,5 mm
- Limiting temperature -55 ... +155 °C
- Insertion force ≤ 7 N
- Withdrawal force ≈ 5 N
-
Performance level
NM 30 (S4)1
- Mating cycles ≥ 500
Material properties
- Material (contacts) Kupferlegierung
- Surface (contacts) Edelmetall über Ni
- Layer thickness ≥ 0,76 µm
- Layer thickness ≥ 30 µinch
- Material (locking) Kupferlegierung
- RoHS konform mit Ausnahme
- RoHS exemptions 6c.: Kupferlegierung mit einem Massenanteil von bis zu 4 % Blei
- ELV status konform mit Ausnahme
- China RoHS 50
- REACH Annex XVII substances nicht enthalten
- REACH ANNEX XIV substances nicht enthalten
- REACH SVHC substances ja
- REACH SVHC substances Blei
- ECHA SCIP number ecef7555-f643-4ceb-a337-fc54762297f1
- California Proposition 65 substances ja
-
California Proposition 65 substances
BleiNickel
Commercial data
- Packaging size 100
- Net weight 2.375 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140099067
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
