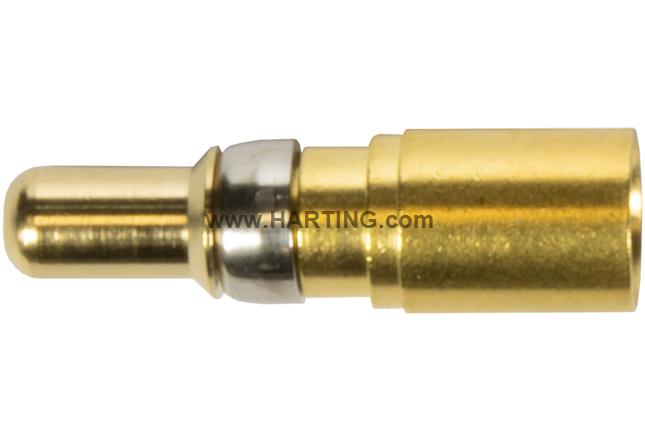

Resumen de caracterísiticas
Contacto de engaste
Recto, Versión corta
Corriente nominal: ≤40 A
Macho
Aleación de cobre
Metal noble sobre Ni
Sección de conductor: 4 ... 6 mm²
AWG 10 ... AWG 8
Detalles del producto
Identification
- Category Contacts
- Series D-Sub
- Identification Mixed
- Type of contact Crimp contact
-
Description of the contact
StraightShort version
- Features Tool setting: 7 for AWG 8 and 6 for AWG 10
Version
- Termination method Terminação crimpada
- Termination method Terminação crimpada
- Gender Macho
- Manufacturing process Turned contacts
Technical characteristics
- Conductor cross-section (mm²) 4 ... 6 mm²
- Conductor cross-section (AWG) AWG 10 ... AWG 8
- Rated current ≤ 40 A
- Contact resistance ≤ 1 mΩ
- Stripping length 6,1 mm
- Limiting temperature -55 ... +155 °C
- Insertion force ≤ 7 N
- Withdrawal force ≈ 5 N
-
Performance level
NM 30 (S4)1
- Mating cycles ≥ 500
Material properties
- Material (contacts) Liga de cobre
- Surface (contacts) Metal nobre sobre Ni
- Layer thickness ≥ 0,76 µm
- Layer thickness ≥ 30 µinch
- Material (locking) Liga de cobre
- RoHS conformidade com exceção
- RoHS exemptions 6 c): Chumbo em ligas de cobre, num teor ponderal não superior a 4 %
- ELV status conformidade com exceção
- China RoHS 50
- REACH Annex XVII substances Não contido
- REACH ANNEX XIV substances Não contido
- REACH SVHC substances Sim
- REACH SVHC substances Fio
- ECHA SCIP number ecef7555-f643-4ceb-a337-fc54762297f1
- California Proposition 65 substances Sim
-
California Proposition 65 substances
FioNíquel
Commercial data
- Packaging size 100
- Net weight 2.08 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140099401
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
