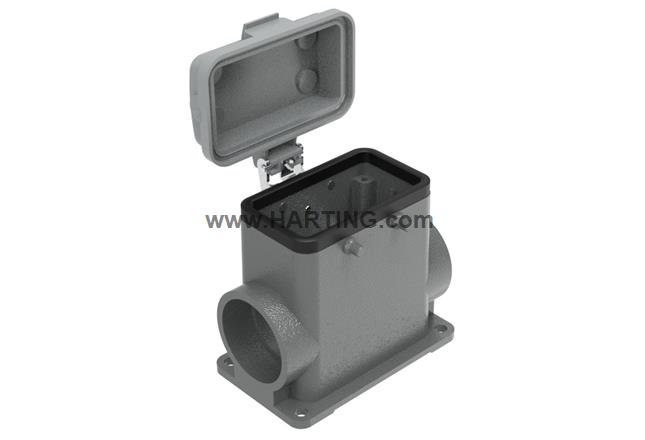

Resumen de caracterísiticas
Base de montaje en superficie
Con tapa de metal
Tamaño: 10 B
Perfil alto
Enclavamiento doble (sobre la capota)
Entrada lateral
2x Pg 29
Material (capota/base): Fundición de aluminio
Recubierto de polvo
RAL 7037 (gris polvo)
Material (junta): NBR
Detalles del producto
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Surface mounted housing
- Description of hood/housing メタルカバー付き
- Type High construction
Version
- Size 10 B
- Version サイドエントリー
- Number of cable entries 2
- Cable entry 2x Pg 29
- Locking type ダブルロックレバー (フード)
- Field of application 産業用コネクタの標準フード/ハウジング
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature IEC 61984に準拠したコネクタとして使用する場合。
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) アルミダイカスト
- Surface (hood/housing) 粉体塗装
- Colour (hood/housing) RAL 7037 (ダストグレー)
- Material (seal) NBR
- RoHS 適合
- ELV status 適合
- China RoHS e
- REACH Annex XVII substances 含まず
- REACH ANNEX XIV substances 含まず
- REACH SVHC substances 含まず
- California Proposition 65 substances はい
-
California Proposition 65 substances
ニッケルナフタリン
- Fire protection on railway vehicles EN 45545-2 (2020-08)
-
Requirement set with Hazard Levels
R1 (HL 1-3)R7 (HL 1-3)
Specifications and approvals
-
Approvals
CEDNV GL
Commercial data
- Packaging size 1
- Net weight 343 g
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140045224
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
