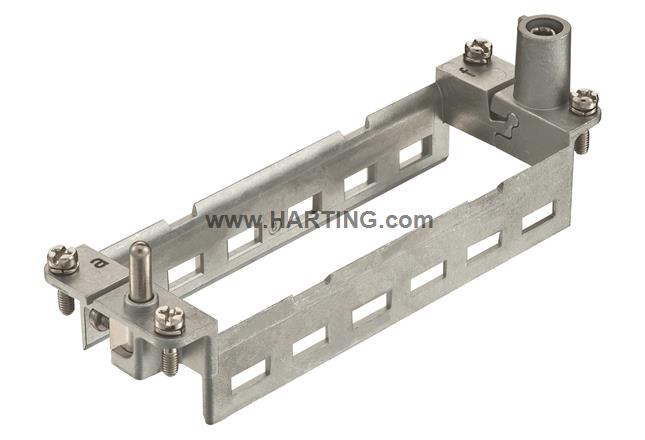

Hinged frame 24B for 6 modules (a..f)

Image is for illustration purposes only. Please refer to product description.

Hinged frame 24B for 6 modules (a..f)

Hinged frame, for 6 modules, a ... f, Size: 24 B

Part number:  09 14 024 0313

  • Category Accessories
  • Series Han-Modular®
  • Type of accessory Hinged frame
  • Description of the accessory
    a ... f
    for 6 modules
  • Size 24 B
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Material Zinc die-cast
  • RoHS compliant with exemption
  • RoHS exemptions 6c: Copper alloy containing up to 4 % lead by weight
  • ELV status compliant with exemption
  • China RoHS 50
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances Yes
  • REACH SVHC substances Lead
  • Specifications
    IEC 61984
    EN 60664-1
  • Approvals DNV GL
  • UL / CSA UL 1977 ECBT2.E235076
  • Packaging size 2
  • Net weight 76.8 g
  • Country of origin Germany
  • European customs tariff number 85389099
