Resumen de caracterísiticas
Conectores
Conector de cable Sobremoldeado
Terminación de engaste
Corriente nominal: 5 A
Contactos: 10
Aleación de cobre
PushPull
Diámetro: Poliamida (PA)
Grado de protección: IP65, IP67

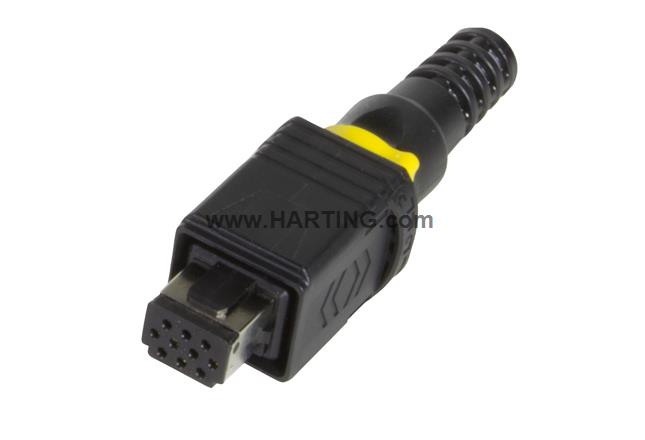

Detalles del producto
Identification
- Category Connectors
- Series HARTING PushPull (V4)
- Identification Signal
- Element Cable connector
- Specification Overmoulded
Version
- Termination method Crimp termination
- Shielding Unshielded
- Number of contacts 10
- Locking type PushPull
- Pack contents incl. plastic housing and female insert
Technical characteristics
- Conductor cross-section (mm²) 0.13 ... 0.82 mm²
- Conductor cross-section (AWG) AWG 26 ... AWG 18
- Wire outer diameter ≤ 2.1 mm
-
Contact spacing (termination side)
2.4 mm3 mm
-
Contact spacing (mating side)
2.4 mm3 mm
- Rated current 5 A
- Rated voltage 50 V
- Rated impulse voltage 1.5 kV
- Pollution degree 3
- Clearance distance ≥ 1.1 mm
- Creepage distance ≥ 1.1 mm
- Insulation resistance >109 Ω
- Contact resistance ≤ 10 mΩ
- Limiting temperature -40 ... +70 °C
- Insertion force 50 N
- Withdrawal force 50 N
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP65IP67
- Cable diameter 4.5 ... 10 mm
-
Test voltage Ur.m.s.
1.5 kV (contact-contact)1.5 kV (contact-ground)
- Isolation group I (600 ≤ CTI)
Material properties
- Material (contacts) Copper alloy
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) Black
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
- Specifications IEC 61076-3-106 Variant 4 (V4)
- Approvals DNV GL
Commercial data
- Packaging size 1
- Country of origin China
- GTIN 5713140880917
- eCl@ss 27440114 Rectangular connector (for field assembly)
- ETIM EC002636
- UNSPSC 24.0 39121408
