Resumen de caracterísiticas

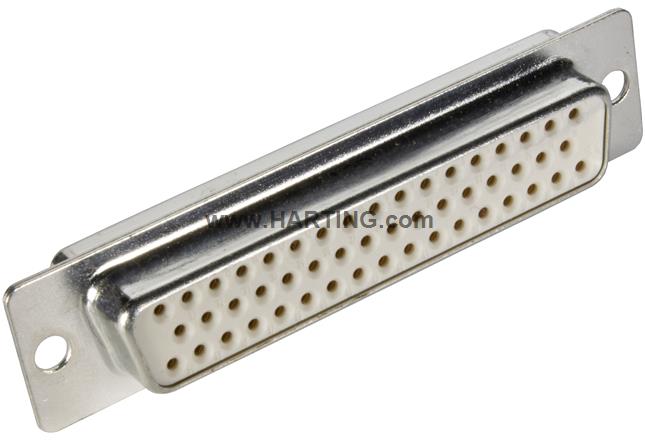

Connector
Solder cup termination
Rated current: 7.5 A
Female
Size: D-Sub 5
Thermoplastic resin, glass-fibre filled (PBTP), Shell: steel, tin plated
White
Contacts: 50
Conductor cross-section: 0.5 mm² max.
Copper alloy
Noble metal over Ni
Detalles del producto
Identification
- Category Connectors
- Series D-Sub
- Identification Standard
- Element Connector
-
Description of the contact
TurnedStraight
Version
- Termination method Solder cup termination
- Gender Female
- Size D-Sub 5
-
Connection type
PCB to cableCable to cable
- Number of contacts 50
- Locking type Fixing flange with feed through hole Ø 3.1 mm
Technical characteristics
- Conductor cross-section 0.5 mm² max.
- Conductor cross-section AWG 20
- Rated current 7.5 A
- Clearance distance ≥ 1 mm
- Creepage distance ≥ 1 mm
- Insulation resistance >1010 Ω
- Contact resistance ≤ 10 mΩ
- Stripping length 2.5 ... 3 mm
- Limiting temperature -55 ... +125 °C (Soldering iron temperature during soldering: max. 350 °C for 3-5 s)
- Insertion force ≤ 167 N
-
Withdrawal force
≥ 14.5 N≤ 111 N
- Performance level 3
- Mating cycles ≥ 50
- Test voltage Ur.m.s. 1 kV
- Isolation group IIIa (175 ≤ CTI < 400)
- Hot plugging No
Material properties
-
Material (insert)
Thermoplastic resin, glass-fibre filled (PBTP)Shell: steel, tin plated
- Colour (insert) White
- Material (contacts) Copper alloy
- Surface (contacts) Noble metal over Ni
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number ecef7555-f643-4ceb-a337-fc54762297f1
- California Proposition 65 substances Yes
-
California Proposition 65 substances
Antimony trioxideLeadNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Commercial data
- Packaging size 50
- Net weight 20.5 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140093621
- ETIM EC001136
- eCl@ss 27440214 D-Sub coupler
