Resumen de caracterísiticas

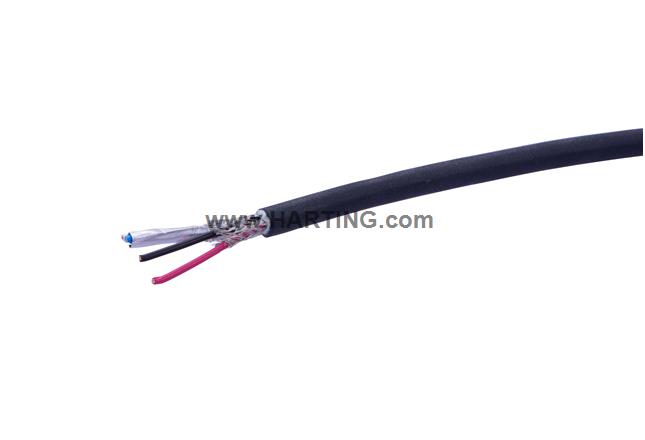

Cable híbrido (cobre/cobre)
1x 2x AWG 22/7, 2x AWG 18/19
PUR (poliuretano)
600 MHz Ancho de banda
Detalles del producto
Identification
- Category System cabling
- Element Bulk cables
- Specification Not assembled
- Type of cable Hybrid cable (copper / copper)
Version
- Number of cores 4
-
Core structure
1x 2x AWG 22/72x AWG 18/19
- Shielding Shielded
Technical characteristics
-
Wire outer diameter
0.245 mm (Data)0.24 mm (Power)
-
Insulation diameter
1.65 ... 1.75 mm (Data)1.7 ... 1.8 mm (Power)
- Rated voltage 60 V DC
- Rated current (data) 4 A
- Rated current (power) 8 A
- Transmission characteristics 600 MHz Bandwidth
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s
- Limiting temperature -40 ... +85 °C
- Cable diameter 7.1 mm ± 0.3 mm
- Minimum bending radius 5x Cable diameter
- Drag chain compatible No
-
Type of shielding
Braid: Tinned copper coresFoil: Al on polyester (Data)Unshielded (Power)
- Test voltage Ur.m.s. 1.5 kV AC @ 50 Hz, 1 min.
Material properties
- Material (cable) PUR (polyurethane)
- Colour (cable) Black
- Material (insulation) Polyethylen (PE)
-
Colour (insulation)
White-blue (Data)red-black (Power)
Specifications and approvals
-
Specifications
IEEE 802.3bp (1000BASE-T1)IEC 60332-1-2 Flame retardancyUL 2556 Sec. 9.3 (FT1)UL 2556 Sec. 9.4 (VW-1)UL 758 Oil resistance
Commercial data
- Packaging size 1
- eCl@ss 27060501 Hybrid cable
- UNSPSC 24.0 26121639
