Part number: 09 45 281 2800

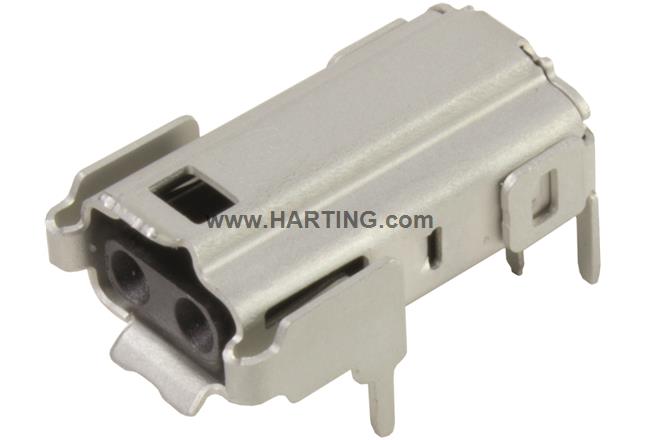

T1 Industrial Jack AH IP20
T1 Industrial Jack AH IP20

Image is for illustration purposes only. Please refer to product description.

Properties Overview
PCB connector
Angled
Reflow soldering termination (THR)
Rated current: ‌4 A
Contacts: 2 + shielding
Notes
Compare
This product is not orderable anymore. You can use the successor 09452812810.
Part number: 09 45 281 2800
T1 Industrial Jack AH IP20
Notes
Compare
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Successor Products
1
Product Details
Identification
  • Category Connectors
  • Series HARTING T1 Industrial
  • Element PCB connector
  • Specification Angled
Version
  • Termination method Reflow soldering termination (THR)
  • Shielding Fully shielded, 360° shielding contact
  • Number of contacts 2
  • further contacts + shielding
  • Pack contents 275 pieces on reel
Technical characteristics
  • Rated current ‌ 4 A
  • Rated voltage ‌ 60 V DC
  • Transmission characteristics 600 MHz Bandwidth
  • Data rate
    ‌ 10 Mbit/s
    ‌ 100 Mbit/s
    ‌ 1 Gbit/s
  • Contact resistance ≤ 20 mΩ
  • Shielding resistance ≤ 100 mΩ
  • Limiting temperature -40 ... +85 °C
  • Mating cycles ≥ 1,000
  • Degree of protection acc. to IEC 60529 IP20
  • Test voltage UDC
    1 kV (contact-contact)
    2.25 kV (contact-ground)
  • Moisture Sensitivity Level (MSL) 1 acc. to ECA/IPC/JEDEC J-STD-020D
  • Process Sensitivity Level (PSL) R0 acc. to ECA/IPC/JEDEC J-STD-020D
Material properties
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
  • California Proposition 65 substances Not contained
Specifications and approvals
  • Specifications
    IEC 63171-6
    IEEE 802.3bu (remote power supply over PoDL = Power over Data Line)
    IEEE 802.3cg (10BASE-T1)
    IEEE 802.3bw (100BASE-T1)
    IEEE 802.3bp (1000BASE-T1)
Commercial data
  • Packaging size 275
  • Net weight 6.18 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27460201 PCB connector (board connector)
