This product is available upon request. Please contact your local HARTING subsidiary.
RJI MF-PN RJ45plug Cat5, 4p IDC straight

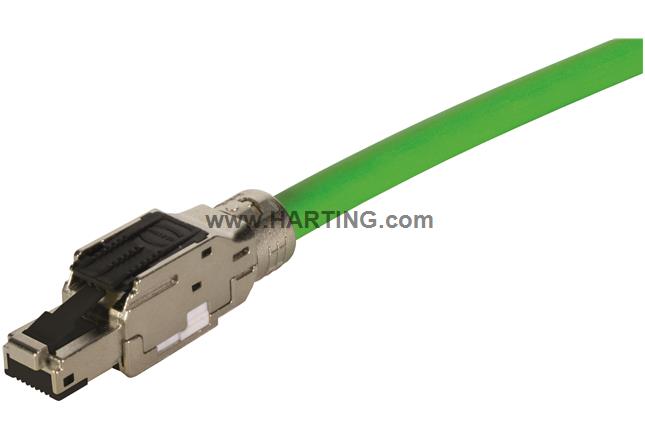

Image is for illustration purposes only. Please refer to product description.

RJI MF-PN RJ45plug Cat5, 4p IDC straight

Connector, Multi Feature RJ45, Straight, IDC termination, Contacts: 4, Conductor cross-section: 0.14 ... 0.34 solid and strandedstranded

Part number:  09 45 151 1140

  • Category Connector
  • Series of hoods/housings HARTING RJ Industrial®
  • Element Connector
  • Specification
    Multi Feature RJ45
    Straight
  • Termination method IDC termination
  • Shielding Fully shielded, 360° shielding contact
  • Number of contacts 4
  • Conductor cross-section 0.14 ... 0.34 mm² solid and stranded
  • Conductor cross-section AWG 26/7 ... AWG 22/1 solid and stranded
  • Wire outer diameter 0.8 ... ‌1.6 mm
  • Limiting temperature -40 ... +85 °C
  • Mating cycles ≥ 750
  • Degree of protection acc. to IEC 60529 IP20
  • Cable diameter 4.5 ... 9 mm
  • Transmission characteristics Cat. 5 Class D up to 100 MHz
  • Data rate
    ‌ 10 Mbit/s
    ‌ 100 Mbit/s
  • Material (hood/housing) Zinc die-cast
  • Specifications
    IEC 60603-7 Mating face
    EN 50173-1
    IEC 11801
  • PROFINET Yes
  • Packaging size 1
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440307 I/O connector
