Please do not use this product for DesignIns anymore.  You can use the alternatives or successors displayed below instead.
HPP V4 RJ45 Cat5 plug 4p IDC

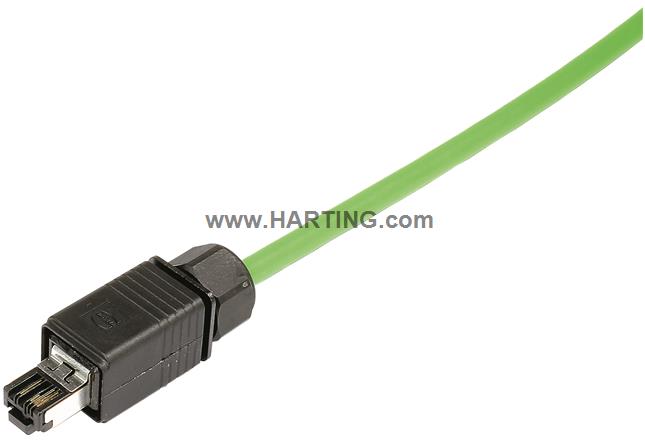

Image is for illustration purposes only. Please refer to product description.

HPP V4 RJ45 Cat5 plug 4p IDC

Connector set, IDC termination, Contacts: 4

Part number:  09 45 145 1100

  • Category Connector
  • Series HARTING PushPull
  • Identification RJ45
  • Element Connector set
  • Termination method IDC termination
  • Locking type PushPull
  • Shielding Fully shielded, 360° shielding contact
  • Number of contacts 4
  • Pack contents incl. housing with RJ45 connector, shielding and cable gland
  • Conductor cross-section
    AWG 23/1 ... AWG 22/1 Solid
    AWG 24/7 ... AWG 22/7 Stranded
  • Limiting temperature -40 ... +70 °C
  • Mating cycles ≥ 750
  • Degree of protection acc. to IEC 60529
    IP65
    IP67
  • Cable diameter 4.9 ... 8.6 mm
  • Transmission characteristics Cat. 5 Class D up to 100 MHz
  • Material (hood/housing) Thermoplastic
  • Colour (hood/housing) Black
  • Flammability acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications IEC 61076-3-106 Variant 4
  • Packaging size 1
  • Net weight 53.3 g
  • Country of origin Romania
  • Customs tariff number 85366990
