Please do not use this product for DesignIns anymore.  You can use the alternatives or successors displayed below instead.

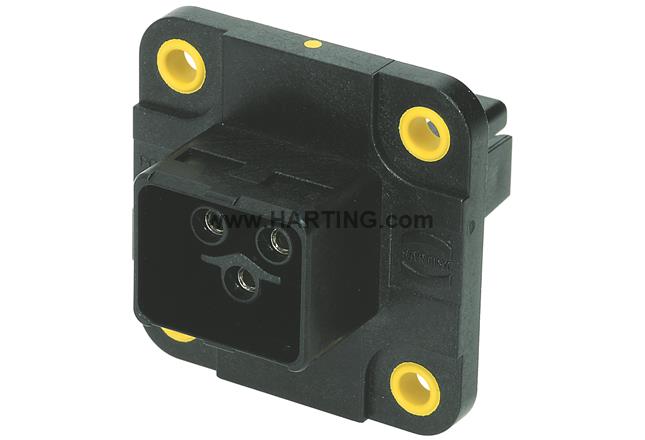

HPP V4 Power EI-PFT 250V/16A 3p crimp

Image is for illustration purposes only. Please refer to product description.

HPP V4 Power EI-PFT 250V/16A 3p crimp

Panel feed through set, Crimp termination, Rated current: 16A, Contacts: 2, Conductor cross-section: 0.75 ... 2.5 StrandedStranded

Part number:  09 46 245 3430

  • Category Connector
  • Series HARTING PushPull
  • Identification Power
  • Element Panel feed through set
  • Description of hood/housing EasyInstall
  • Termination method Crimp termination
  • Locking type PushPull
  • Number of contacts 2
  • PE contact Yes
  • Pack contents with 3 turned female crimp contacts, insulation body and hood.
  • Conductor cross-section 1.5 mm²
  • Conductor cross-section AWG 16 ... AWG 14
  • Electrical data acc. to IEC 61984 16 A   250 V   4 kV   3
  • Rated current 16 A
  • Rated voltage 250 V
  • Rated impulse voltage 4 kV
  • Pollution degree 3
  • Limiting temperature -40 ... +70 °C
  • Mating cycles ≥ 750
  • Degree of protection acc. to IEC 60529
    IP65
    IP67
  • Cable diameter 4.9 ... 8.6 mm
  • Material (hood/housing) Thermoplastic
  • Colour (hood/housing) Black
  • Flammability acc. to UL 94 V-0
  • RoHS compliant with exemption
  • RoHS exemptions 6c: Copper alloy containing up to 4 % lead by weight
  • ELV status compliant with exemption
  • China RoHS 50
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances Yes
  • REACH SVHC substances Lead
  • Specifications IEC 61076-3-106 Variant 4
  • UL / CSA
    UL 1977 ECBT2.E235076
    CSA-C22.2 No. 182.3 ECBT8.E235076
  • Packaging size 1
  • Net weight 9.54 g
  • Country of origin Romania
  • Customs tariff number 85366990
