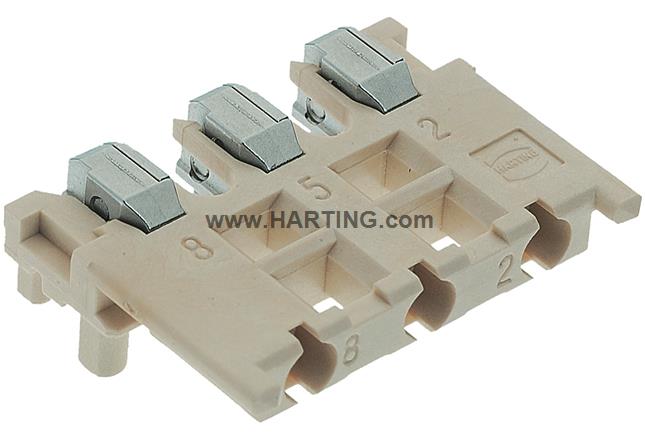

Image is for illustration purposes only. Please refer to product description.

Mini Coax angled 3pak3 single row

Connectors, Male connector, Angled, Press-in termination, Contacts: 3, Copper alloy, Gold plated, Mating side, Gold plated, Termination side, centre pin, Nickel plated, Termination side, grounding pin, Liquid crystal polymer (LCP), Beige

Part number: 07 31 100 0028

Please or for a free MyHARTING Account to see all information about product availability and your order.

Technical data & Downloads

Technical data

Go to:

Identification
Version
Technical characteristics
Material properties
Specifications and approvals
Commercial data

Identification

Category Connectors
Series Mini Coax
Element Male connector
Specification Angled

Version

Termination method Press-in termination
Connection type Motherboard to daughtercard
Number of contacts 3
Contact configuration 2, 5, 8

Technical characteristics

Contact rows 1
Contact spacing (termination side) 8.8 mm
Data rate ≤ 2,500 MHz
Insulation resistance > 5 x 10⁹ Ω
Contact resistance
≤12 mΩ Centre pin

≤6 mΩ Grounding pin
Limiting temperature -55 ... +125 °C
Insertion force ≤ 30 N
Withdrawal force > 3 N
Mating cycles ≥ 500
Test voltage U_r.m.s. 1 kV
Isolation group IIIa (175 ≤ CTI < 400)
Impedance ‌50 Ω
PCB thickness ≥1.6 mm

Material properties

Material (insert) Liquid crystal polymer (LCP)
Colour (insert) Beige
Material (contacts) Copper alloy
Surface (contacts)
Gold plated Mating side

Gold plated Termination side, centre pin

Nickel plated Termination side, grounding pin
Material flammability class acc. to UL 94 V-0
RoHS compliant with exemption
RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
ELV status compliant with exemption
China RoHS 50
REACH Annex XVII substances No
REACH ANNEX XIV substances No
REACH SVHC substances Yes
REACH SVHC substances Lead
California Proposition 65 substances Yes
California Proposition 65 substances
Nickel

Lead
