Part number: 09 14 003 3051

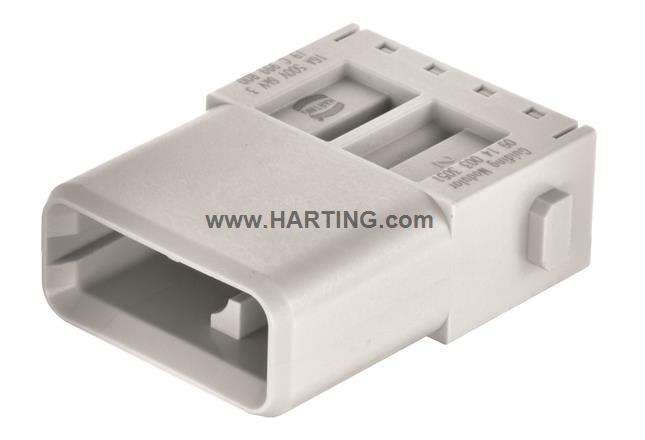

Han Guiding Relay module, male
Han Guiding Relay module, male

Image is for illustration purposes only. Please refer to product description.

Properties Overview
Han® Guiding module
Relay module
Notes
Compare
Load in configurator
All functionalities, price and availability after sign in.
Part number: 09 14 003 3051
Han Guiding Relay module, male
Notes
Compare
Load in configurator
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Contacts
18
Tools
2
Product Details
Identification
  • Category Modules
  • Series Han-Modular®
  • Type of module Han® Guiding module
  • Size of the module Single module
  • Description of the module Relay module
  • Features
    2 contacts with relay function (last mate - first break)
    Enables other power contacts to be switched off via a relay and thus offers greater safety in the event of a fault (when used as intended, the connector must not be plugged in or disconnected under voltage / load)
Version
  • Termination method Crimp termination
  • Gender Male
  • Number of contacts 3
  • Details Please order crimp contacts separately.
Technical characteristics
  • Conductor cross-section 0.14 ... 4 mm²
  • Rated current ‌ 16 A
  • Rated voltage 500 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Insulation resistance >1010 Ω
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Lock-in range ± 4 mm
Material properties
  • Material (insert) Polycarbonate (PC)
  • Colour (insert) RAL 7032 (pebble grey)
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
  • California Proposition 65 substances Not contained
  • Fire protection on railway vehicles EN 45545-2 (2020-08)
  • Requirement set with Hazard Levels
    R22 (HL 1-3)
    R23 (HL 1-3)
Specifications and approvals
  • Specifications
    EN 60664-1
    IEC 61984
Commercial data
  • Packaging size 2
  • Net weight 15.1 g
  • Country of origin China
  • European customs tariff number 85389099
  • eCl@ss 90909090 Interim classification (unspecified)
Documentation
Data Sheet

Show information

Download Settings

Show information

Type Sheet

Show information

Download Settings

Show information

Product Declaration

Show information

Download Settings

Show information

Engineering Data
3D CAD Data

Show information

Download Settings

Show information

2D/3D Multi CAD Data

Show information

Download Settings

Show information

Zuken E³.series (2019+)

Show information

Download

Show information

Catalogues & Brochures
Chapter Han-Modular®
Industrial Connectors Han®
