Part number: 09 14 001 3003

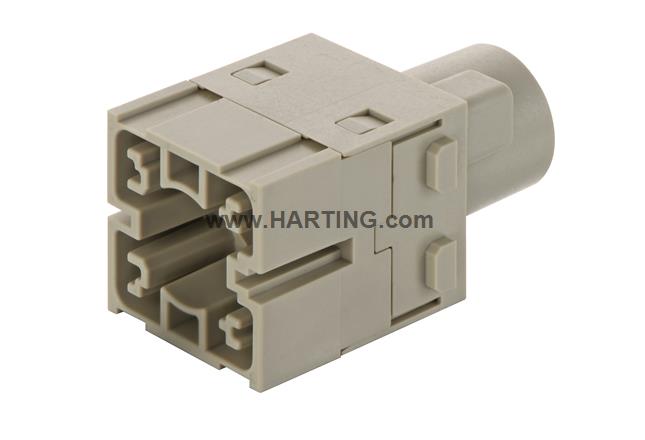

Han 200A crimp module, male
Han 200A crimp module, male

Image is for illustration purposes only. Please refer to product description.

Properties Overview
Han® 200 A module
Double module
Crimp termination
Male
Contacts: 1
Conductor cross-section: 16 ... 70 mm²
Rated current: ‌200 A
Polycarbonate (PC)
RAL 7032 (pebble grey)
Notes
Compare
Load in configurator
Part number: 09 14 001 3003
Han 200A crimp module, male
Notes
Compare
Load in configurator
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Contacts
9
Tools
2
Product Details
Identification
  • Category Modules
  • Series Han-Modular®
  • Type of module Han® 200 A module
  • Size of the module Double module
Version
  • Termination method Crimp termination
  • Gender Male
  • Number of contacts 1
  • Details Please order crimp contacts separately.
Technical characteristics
  • Conductor cross-section 16 ... 70 mm²
  • Rated current ‌ 200 A
  • Rated voltage 1,000 V
  • Rated voltage
    ‌ 1,000 V AC
    ‌ 1,300 V DC
  • Rated impulse voltage 8 kV
  • Pollution degree 3
  • Insulation resistance >1010 Ω
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
Material properties
  • Material (insert) Polycarbonate (PC)
  • Colour (insert) RAL 7032 (pebble grey)
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
  • California Proposition 65 substances Not contained
  • Fire protection on railway vehicles EN 45545-2 (2020-08)
  • Requirement set with Hazard Levels
    R22 (HL 1-3)
    R23 (HL 1-3)
Specifications and approvals
  • Specifications
    EN 50124-1
    EN 60664-1
    IEC 61984
  • Approvals DNV GL
Commercial data
  • Packaging size 1
  • Net weight 0.025 kg
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440217 Module for industrial connectors (power/signals)
