Han 1A-M12-m X-coded, latch

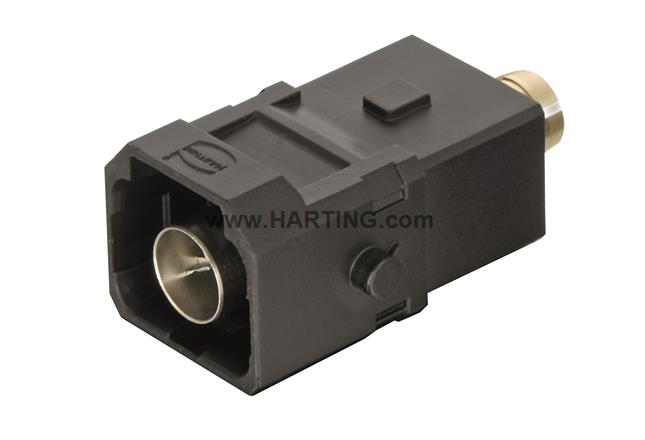

Image is for illustration purposes only. Please refer to product description.

Han 1A-M12-m X-coded, latch

Inserts, Crimp termination, Male, Polyamide, RAL 9005 (jet black), Rated current: 0.5A, Size: 1 A, Contacts: 8, + shielding, Conductor cross-section: 0.08 ... 0.25mm², Snap-in latches

Part number:  09 10 008 3000

  • Category Inserts
  • Series Han® 1 A
  • Termination method Crimp termination
  • Gender Male
  • Locking type Snap-in latches
  • Size 1 A
  • Shielding With cable tie
  • Number of contacts 8
  • Additional contacts + shielding
  • Details
    Please order crimp contacts separately.
    Order separately the hoods/housings for an IP65 performance.
  • Conductor cross-section 0.08 ... 0.25 mm²
  • Rated current 0.5 A
  • Rated voltage 48 V
  • Rated impulse voltage 0.8 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Transmission characteristics Cat. 6A Class EA up to 500 MHz
  • Data rate ‌ 10 Gbit/s
  • Material (insert) Polyamide
  • Colour (insert) RAL 9005 (jet black)
  • Material flammability class acc. to UL 94 V-0
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
  • Packaging size 1
  • eCl@ss 27440205 Contact insert for industrial connectors
