Han 1A-3+PE-c-m shielded, latch

Image is for illustration purposes only. Please refer to product description.

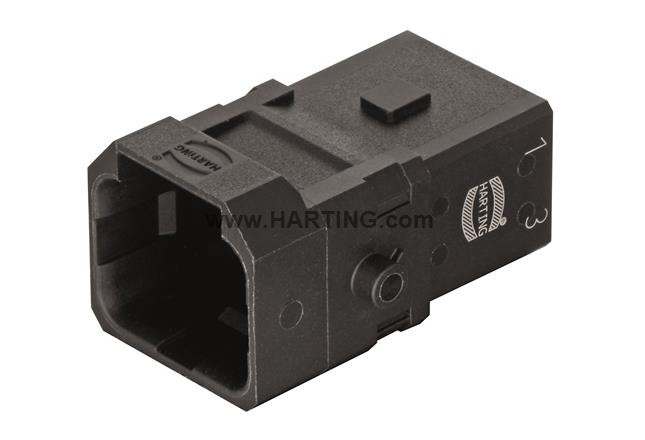

Han 1A-3+PE-c-m shielded, latch

Inserts, Crimp termination, Male, Polyamide, RAL 9005 (jet black), Rated current: 10A, Size: 1 A, Contacts: 3, + shielding, Conductor cross-section: 0.14 ... 2.5mm², Snap-in latches

Part number:  09 10 003 3000

Simply configure your entire connector!

Combinable products
  • Category Inserts
  • Series Han® 1A
  • Termination method Crimp termination
  • Gender Male
  • Locking type Snap-in latches
  • Size 1 A
  • Shielding With cable tie
  • Number of contacts 3
  • Additional contacts + shielding
  • PE contact Yes
  • Details
    Please order crimp contacts separately.
    Order separately the hoods/housings for an IP65 performance.
  • Details A Han® 1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector acc. to IEC 61984. In this case protection against electric shock must be provided by the installation methods of the user.
  • Pack contents Shielding element is included within the delivery
  • Conductor cross-section 0.14 ... 2.5 mm²
  • Rated current 10 A
  • Rated voltage 400 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Material (insert) Polyamide
  • Colour (insert) RAL 9005 (jet black)
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
    EN 60664-1
    IEC 61984
  • Approvals DNV GL
  • Packaging size 1
  • Net weight 13.6 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440205 Contact insert for industrial connectors
