Properties Overview

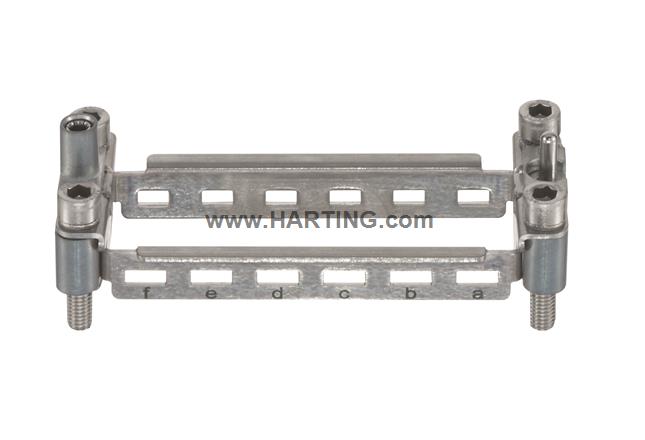

Frame
for up to 6 single modules, a ... f
Size: 16 HPR enlarged
Product Details
Identification
- Category Accessories
- Series of hoods/housings Han® HPR enlarged
- Type of accessory Frame
-
Description of the accessory
for up to 6 single modulesa ... f
Version
- Size 16 HPR enlarged
-
Pack contents
1x male PE adapter1x female PE adapter2x M3 screw4x washer SK S64x cheese-head screw M6 x 304x cheese-head screw M6 x 40
Technical characteristics
-
Conductor cross-section
4 ... 10 mm² PE terminal power side1 ... 2.5 mm² PE terminal signal side
-
Tightening torque
0.5 Nm Fixing screws M310 Nm Fixing screws M60.8 Nm PE terminal clamp 1 ... 2.5 mm21.5 Nm PE terminal clamp 4 ... 10 mm2
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
-
Material (accessories)
Zinc die-castStainless steel
Commercial data
- Packaging size 1
- Net weight 218.2 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140194342
- ETIM EC002310
- eCl@ss 27440210 Fixing element for industrial connectors
