This product is not orderable anymore.  Instead please use the alternatives or successors displayed below.
HAIIC MICA IoT Kit EU

Image is for illustration purposes only. Please refer to product description.

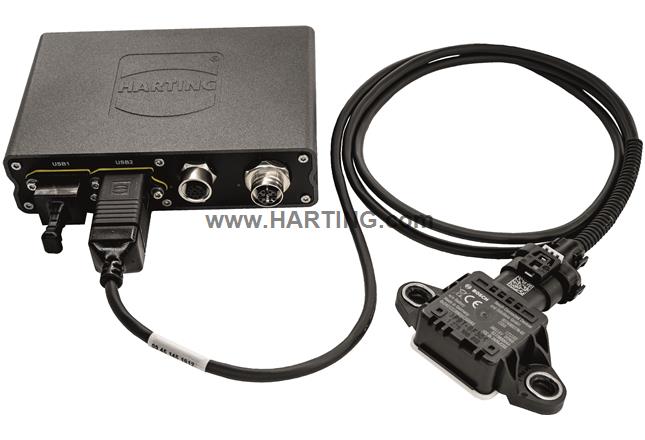

HAIIC MICA IoT Kit EU

MICA, CISS IoT Kit

Part number:  20 95 000 0016 00

  • Series HARTING IIC
  • Element MICA
  • Specification CISS IoT Kit
  • Features Multisensor Package
  • Processor 1 GHz ARM
  • Memory
    1 GB RAM
    4 GB eMMC
  • Fixing On-wall or DIN rail mounting
  • Diagnostic display
    LEDs to display connection status
    LEDs to display operating state
  • Pack contents
    2095000000200, HAIIC MICA USB
    09488223756015, M12 X coded PushPull Cable Assembly, 1,5m
    21348400C79015, M12 Cable Assembly A-cod st/- m/- 1,5m
    20933100111, RFID PoE Injector 13 W
    0273.600.044-001 Bosch CISS Sensor
  • Supply voltage
    48 V PoE
    24 V DC
  • Interfaces
    USB 2.0 (IP67 PushPull)
    Ethernet 100 Mbit/s
    GPIO
  • Limiting temperature
    -25 ... +75 °C MICA
    -20 ... -80 °C Bosch CISS sensor
  • Storage temperature -20 ... +80 °C
  • Relative humidity
    5 ... 95 % Non-condensing (MICA)
    10 ... 90 % Non-condensing (Bosch CISS Sensor)
  • Degree of protection acc. to IEC 60529
    IP67 MICA
    IP54 Bosch CISS sensor
  • Material (hood/housing) Aluminium
  • Surface (hood/housing) Powder-coated
  • Length 132 mm
  • Width 86 mm
  • Height 35 mm
  • RoHS compliant with exemption
  • RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
  • ELV status compliant with exemption
  • China RoHS 50
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances Yes
  • REACH SVHC substances
    Lead
    Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
  • Specifications
    EN 60950
    IEC 60068-2-6
    IEC 60068-2-27
    EN 301489
    IEC 50364
  • Packaging size 1
  • Net weight 1,348 g
  • Country of origin Germany
  • European customs tariff number 84714100
  • eCl@ss 90909090 Interim classification (unspecified)
