This product is not orderable anymore.
Instead please use the alternatives or successors displayed below.

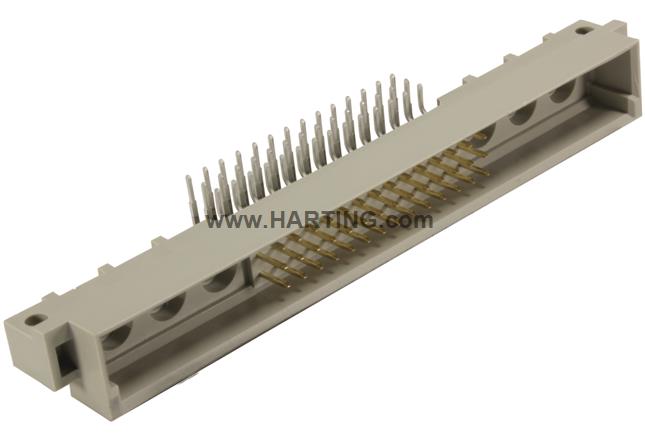

Image is for illustration purposes only. Please refer to product description.
DIN-Signal M032MS-3,0C1-2
Connectors, Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Part number: 09 03 142 6922
Go to:
- Category Connectors
- Series DIN 41612
- Identification Type M
- Element Male connector
- Description of the contact Straight
-
Features
lead-freeRated current of special contacts: see data sheet of the selected contacts
- Termination method Wave soldering termination
-
Connection type
Motherboard to daughtercardMezzaninePCB to cableCable to cable
- Number of contacts 48
- Number of signal contacts 42
- Number of special contacts 6
- Contact configuration Rows a, b and c, positions 10, 11, ... , 22, 23
- Termination length 3 mm
- Coding Coding with loss of contacts
- PCB fixing With fixing flange
- Contact rows 3
-
Contact spacing (termination side)
2.54 mm7.62 mm
-
Contact spacing (mating side)
2.54 mm7.62 mm
- Rated current 2 A
- Rated current Rated current measured at 20 °C, see derating curve for details
- Clearance distance ≥ 1.2 mm
- Creepage distance ≥ 1.2 mm
- Insulation resistance >1012 Ω
- Contact resistance ≤ 20 mΩ
- Limiting temperature -55 ... +125 °C
- Insertion and withdrawal force ≤ 40 N
-
Performance level
2acc. to IEC 60603-2
- Mating cycles ≥ 400
- Test voltage Ur.m.s. 1 kV
- Isolation group IIIa (175 ≤ CTI < 400)
- Hot plugging No
- Material (insert) Thermoplastic resin, glass-fibre filled
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
-
Surface (contacts)
Noble metal over Ni Mating sideSn over Ni Termination side
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances No
- REACH ANNEX XIV substances No
- REACH SVHC substances No
- California Proposition 65 substances Yes
-
California Proposition 65 substances
NickelLeadAntimony trioxide
- Specifications IEC 60603-2
-
UL / CSA
UL 1977 ECBT2.E102079CSA-C22.2 No. 182.3 ECBT8.E102079
- Railway classification F4/I3 acc. to NFF 16-101/102
- Packaging size 200
- Net weight 11.35 g
- Country of origin Germany
- European customs tariff number 85366990
- eCl@ss 27460201 PCB connector (board connector)
- Data sheet
- Product Declaration Certificate
- CAD data 3D
