Han L32 E SMC FI SCT 0,75 - 2,5 mm²

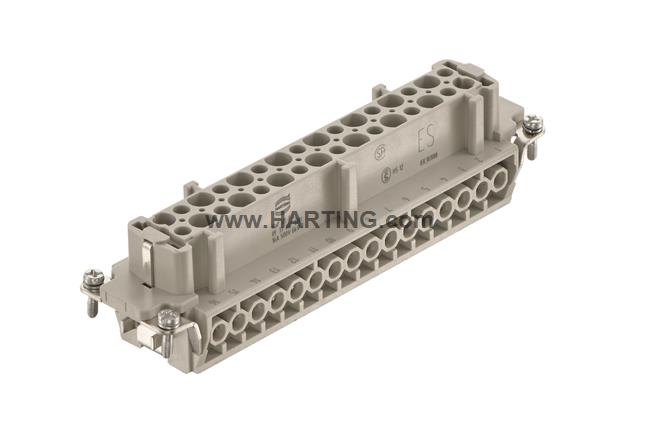

Image is for illustration purposes only. Please refer to product description.

Han L32 E SMC FI SCT 0,75 - 2,5 mm²

Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: L32 B, Contacts: 32, Conductor cross-section: 0.75 ... 2.5 mm², Copper alloy, Silver plated

Part number:  09 33 032 2701

  • Category Inserts
  • Series Han E®
  • Termination method Screw termination
  • Gender Female
  • Size L32 B
  • With wire protection Yes
  • Number of contacts 32
  • PE contact Yes
  • Conductor cross-section 0.75 ... 2.5 mm²
  • Conductor cross-section AWG 18 ... AWG 14
  • Rated current ‌ 16 A
  • Rated voltage 500 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Rated voltage acc. to UL 600 V
  • Rated voltage acc. to CSA 600 V
  • Insulation resistance >1010 Ω
  • Contact resistance ≤ 1 mΩ
  • Stripping length 7.5 mm
  • Tightening torque ‌0.5 Nm
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Material (insert) Polycarbonate (PC)
  • Colour (insert) RAL 7032 (pebble grey)
  • Material (contacts) Copper alloy
  • Surface (contacts) Silver plated
  • Material flammability class acc. to UL 94 V-0
  • Specifications
    EN 60664-1
    IEC 61984
  • Approvals DNV GL
  • UL / CSA UL 1977 ECBT2.E235076
  • Packaging size 1
  • Net weight 0.01 g
  • Country of origin China
  • eCl@ss 27440205 Contact insert for industrial connectors
