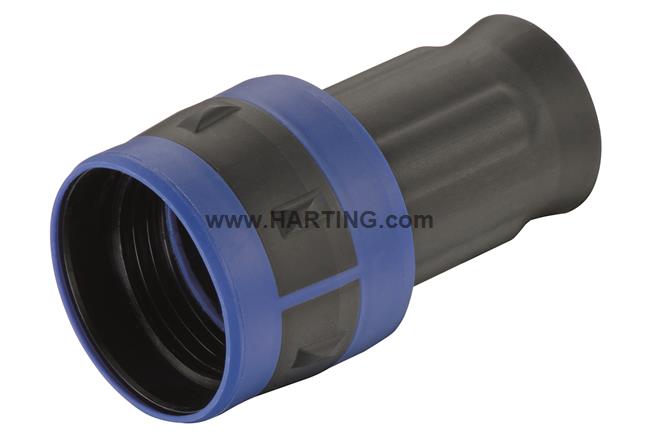

Han F+B hood-gg-M25

Image is for illustration purposes only. Please refer to product description.

Han F+B hood-gg-M25

Hoods, With three through holes for fixing screws, Screw locking, Top entry, 1x M25, Material (hood/housing): Polypropylen, Material (seal): EPDM/TPE, Degree of protection: IP67, in locked position, IP6K9K acc. to ISO 20653

Part number:  19 15 503 1401

  • Category Hoods/Housings
  • Series of hoods/housings Han® F+B
  • Type of hood/housing Hoods
  • Description of hood/housing With three through holes for fixing screws
  • Locking type Screw locking
  • Version Top entry
  • Cable entry 1x M25
  • Field of application Connector for food+beverage industry
  • Details
    Strain relief:A suitable strain relief is required to enable the F+B connectorto resist the stress caused e.g. by the daily cleaning of the machinery. DIN VDE 0100-520: 2013-06 defines the stress relief for a connector depending on the outer diameter of the cable.
    Cleaning: For cleaning with high pressure lances, a cleaning distance > 30 cm is recommended in order to avoid mechanical damage to the connector’s exterior parts.
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Degree of protection acc. to IEC 60529
    IP67 in locked position
    IP6K9K acc. to ISO 20653
  • Material (hood/housing) Polypropylen
  • Material (seal) EPDM/TPE
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Packaging size 1
  • Net weight 54.8 g
  • Country of origin Germany
  • European customs tariff number 85389099
  • eCl@ss 27440202 Shell for industrial connectors
