Han 1A-M12-m X-coded

Image is for illustration purposes only. Please refer to product description.

Han 1A-M12-m X-coded

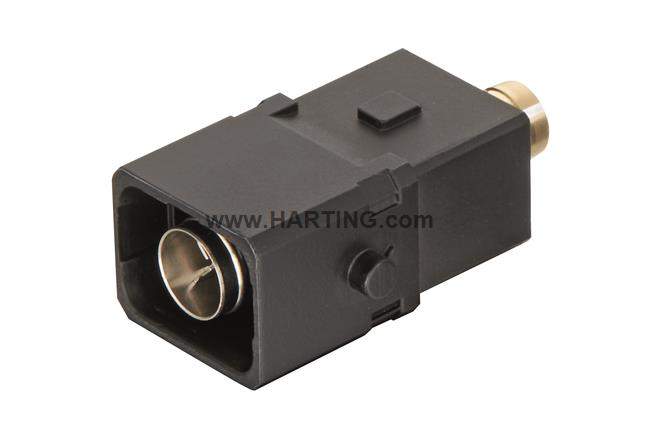

Inserts, Crimp termination, Male, Polyamide, RAL 9005 (jet black), Rated current: 0.5A, Size: 1 A, Contacts: 8, + shielding, Conductor cross-section: 0.08 ... 0.25mm², Single locking lever

Part number:  09 10 008 3005

  • Category Inserts
  • Series Han® 1A
  • Termination method Crimp termination
  • Gender Male
  • Locking type Single locking lever
  • Size 1 A
  • Shielding With cable tie
  • Number of contacts 8
  • Additional contacts + shielding
  • Details
    Please order crimp contacts separately.
    Order separately the hoods/housings for an IP65 performance.
    Please order locking lever separately.
  • Details A Han® 1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector acc. to IEC 61984. In this case protection against electric shock must be provided by the installation methods of the user.
  • Conductor cross-section 0.08 ... 0.25 mm²
  • Rated current 0.5 A
  • Rated voltage 48 V
  • Rated impulse voltage 0.8 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Transmission characteristics Cat. 6A Class EA up to 500 MHz
  • Data rate ‌ 10 Gbit/s
  • Material (insert) Polyamide
  • Colour (insert) RAL 9005 (jet black)
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
  • Packaging size 1
  • eCl@ss 27440205 Contact insert for industrial connectors
