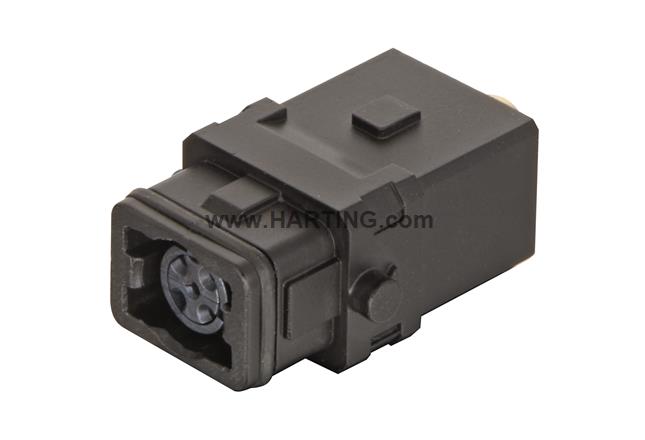

Han 1A-M12-f D-coded

Image is for illustration purposes only. Please refer to product description.

Han 1A-M12-f D-coded

Inserts, Crimp termination, Female, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌4 A, Size: 1 A, Contacts: 4, + shielding, Conductor cross-section: 0.13 ... 0.82 mm², Single locking lever

Part number:  09 10 004 3105

Simply configure your entire connector!

Combinable products
  • Category Inserts
  • Series Han® 1A
  • Termination method Crimp termination
  • Gender Female
  • Locking type Single locking lever
  • Size 1 A
  • Shielding With cable tie
  • Number of contacts 4
  • Additional contacts + shielding
  • Details
    Please order crimp contacts separately.
    Order separately the hoods/housings for an IP65 performance.
    Contact insert not compatible with 09 10 000 0800 (bulkhead mounted housing, angled)
    Please order locking lever separately.
  • Details A Han® 1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector acc. to IEC 61984. In this case protection against electric shock must be provided by the installation methods of the user.
  • Conductor cross-section 0.13 ... 0.82 mm²
  • Rated current ‌ 4 A
  • Rated voltage
    48 V AC
    60 V DC
  • Rated impulse voltage 1.5 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Transmission characteristics Cat. 5 Class D up to 100 MHz
  • Data rate ‌ 100 Mbit/s
  • Material (insert) Polyamide (PA)
  • Colour (insert) RAL 9005 (jet black)
  • Material (seal) NBR
  • Colour (seal) Black
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
    EN 60664-1
    IEC 61984
  • Approvals DNV GL
  • Packaging size 1
  • Net weight 30 g
  • Country of origin Romania
  • European customs tariff number 85366990
  • eCl@ss 27440205 Contact insert for industrial connectors
