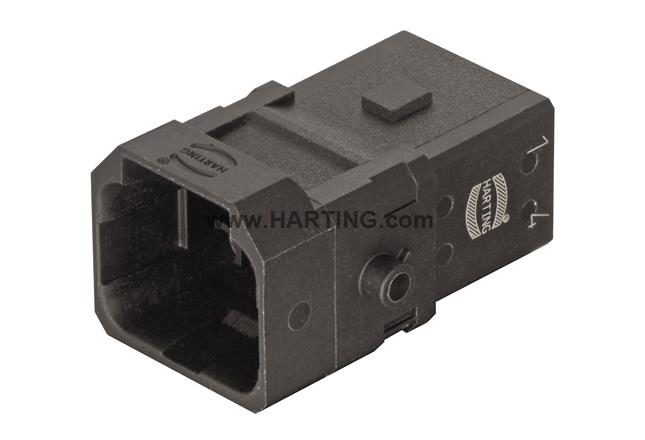

Han 1A-5+PE-c-m latch

Image is for illustration purposes only. Please refer to product description.

Han 1A-5+PE-c-m latch

Inserts, Crimp termination, Male, Polyamide, RAL 9005 (jet black), Rated current: 10A, Size: 1 A, Contacts: 5, Conductor cross-section: 0.14 ... 2.5mm², Snap-in latches

Part number:  09 10 005 3000

  • Category Inserts
  • Series Han® 1 A
  • Termination method Crimp termination
  • Gender Male
  • Locking type Snap-in latches
  • Size 1 A
  • Number of contacts 5
  • PE contact Yes
  • Details
    Order separately the single wire seal or the hoods/housings for an IP65 performance.
    Please order crimp contacts separately.
  • Conductor cross-section 0.14 ... 2.5 mm²
  • Rated current 10 A
  • Rated voltage 400 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Material (insert) Polyamide
  • Colour (insert) RAL 9005 (jet black)
  • Material flammability class acc. to UL 94 V-0
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    EN 61373 Cat 1B
    EN 45545-2 R23: HL1, HL2, HL3
  • Packaging size 1
  • Net weight 9 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440205 Contact insert for industrial connectors
