Han 1A-12-c-f

Image is for illustration purposes only. Please refer to product description.

Han 1A-12-c-f

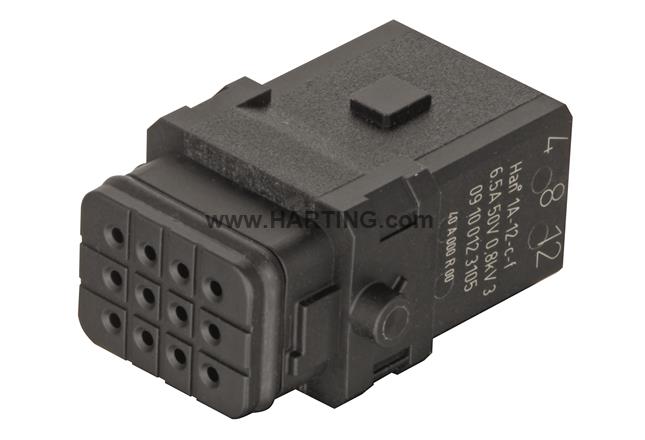

Inserts, Crimp termination, Female, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌6.5 A, Size: 1 A, Contacts: 12, Conductor cross-section: 0.09 ... 0.52 mm², Single locking lever

Part number:  09 10 012 3105

  • Category Inserts
  • Series Han® 1A
  • Termination method Crimp termination
  • Gender Female
  • Locking type Single locking lever
  • Size 1 A
  • Number of contacts 12
  • Details
    Please order crimp contacts separately.
    Please order locking lever separately.
    Order separately the single wire seal or the hoods/housings for an IP65 performance.
  • Details
    A Han® 1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector. In this case protection against electric shock must be provided by the installation methods of the user.
    Contact inserts must not be coupled or decoupled under electrical load.
    Contact inserts must not be powered-up in the un-mated condition.
  • Conductor cross-section 0.09 ... 0.52 mm²
  • Rated current ‌ 6.5 A
  • Rated voltage 50 V
  • Rated impulse voltage 0.8 kV
  • Pollution degree 3
  • Insulation resistance >108 Ω
  • Limiting temperature -30 ... +90 °C
  • Mating cycles ≥ 100
  • Degree of protection acc. to IEC 60529 IP20
  • Material (insert) Polyamide (PA)
  • Colour (insert) RAL 9005 (jet black)
  • Material (seal) NBR
  • Colour (seal) Black
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
    EN 60664-1
  • Approvals DNV GL
  • Packaging size 1
  • Net weight 10.5 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440205 Contact insert for industrial connectors
