Han 16B/EMV HBM Plus DL

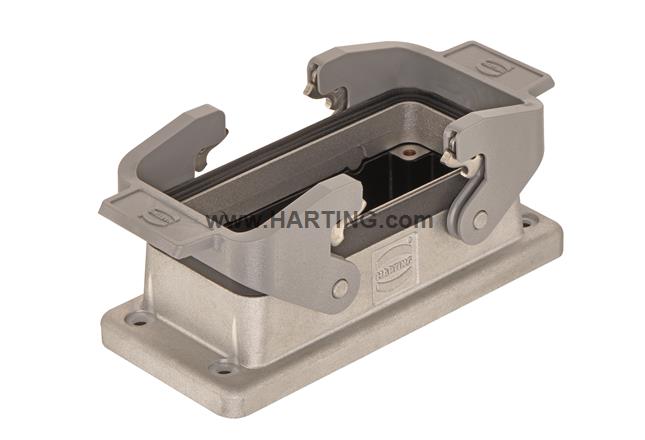

Image is for illustration purposes only. Please refer to product description.

Han 16B/EMV HBM Plus DL

Bulkhead mounted housings, Rear mounting, Size: 16 B, Low construction, Double locking lever, Polycarbonate, Stainless steel, Material (hood/housing): Aluminium die-cast, Uncoated, Unpainted, Material (seal): NBR, Degree of protection: IP66

Part number:  09 62 816 0315

  • Category Hoods/Housings
  • Series of hoods/housings Han® EMC/B
  • Type of hood/housing Bulkhead mounted housings
  • Description of hood/housing Rear mounting
  • Type Low construction
  • Locking type Double locking lever
  • Han-Easy Lock® Yes
  • Size 16 B
  • Field of application Hoods/Housings for higher EMC requirements
  • Pack contents Mounting frame is included within the delivery
  • Limiting temperature -40 ... +125 °C
  • Degree of protection acc. to IEC 60529 IP66
  • Type rating acc. to UL 50 / UL 50E
    12
    4
  • Material (hood/housing) Aluminium die-cast
  • Surface (hood/housing) Uncoated
  • Colour (hood/housing) Unpainted
  • Material (seal) NBR
  • Material (locking)
    Stainless steel
    Polycarbonate
  • Colour (locking) RAL 7037 (dust grey)
  • Material (accessories)
    Stainless steel
    Polyamide
  • Material flammability class acc. to UL 94 (locking levers) V-0
  • Approvals DNV GL
  • UL / CSA
    UL 1977 ECBT2.E235076
    CSA-C22.2 No. 182.3 ECBT8.E235076
  • Packaging size 1
  • Net weight 122.1 g
  • Country of origin China
  • European customs tariff number 8538900000
  • eCl@ss 27440202 Shell for industrial connectors
