Properties Overview
Connectors
Cable connector
Crimp termination
Rated current: 5 A
Contacts: 10
Copper alloy
PushPull
Material: Polyamide (PA)
Degree of protection: IP65, IP67
This product is not orderable anymore. You can use the successor 09451459011.
Product Details
Identification
- Category Connectors
- Series HARTING PushPull (V4)
- Identification Signal

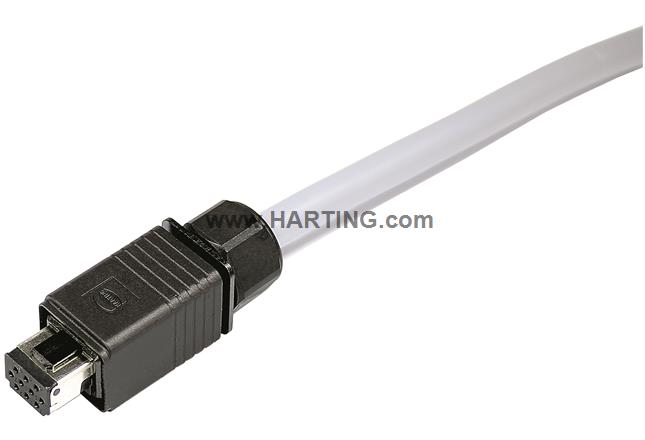

- Element Cable connector
Version
- Termination method Crimp termination
- Shielding Fully shielded, 360° shielding contact
- Number of contacts 10
- Locking type PushPull
- Pack contents incl. plastic housing and female insert
Technical characteristics
- Conductor cross-section 0.13 ... 0.82 mm²
- Conductor cross-section AWG 26 ... AWG 18
- Wire outer diameter ≤ 2.1 mm
-
Contact spacing (termination side)
2.4 mm3 mm
-
Contact spacing (mating side)
2.4 mm3 mm
- Rated current 5 A
- Rated voltage 50 V
- Rated impulse voltage 1.5 kV
- Pollution degree 3
- Clearance distance ≥ 1.1 mm
- Creepage distance ≥ 1.1 mm
- Insulation resistance >109 Ω
- Contact resistance ≤ 10 mΩ
- Limiting temperature -40 ... +85 °C
- Insertion force 50 N
- Withdrawal force 50 N
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP65IP67
- Cable diameter 4.9 ... 8.6 mm
-
Test voltage Ur.m.s.
1.5 kV (contact-contact)1.5 kV (contact-ground)
- Isolation group I (600 ≤ CTI)
- Vibration resistance 10-500 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
- Shock resistance 50 g / 11 ms, 10 shocks / axis and direction
Material properties
- Material (contacts) Copper alloy
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) Black
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
-
California Proposition 65 substances
NickelNaphthalene
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 10
- Net weight 46.6 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140059313
- ETIM EC002636
- eCl@ss 27440114 Rectangular connector (for field assembly)
