Properties Overview
Connectors
Connector sets
IDC termination
Contacts: 8
PushPull
Material: Thermoplastic
Degree of protection: IP65, IP67
This product is not orderable anymore. You can use the successor 09451451561.
Product Details
Identification
- Category Connectors

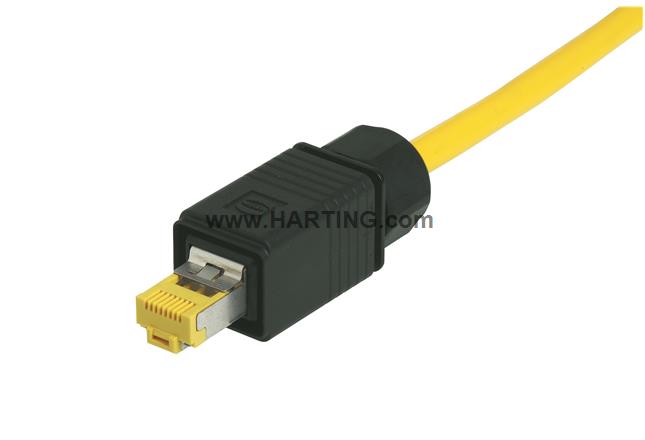

- Series HARTING PushPull (V4)
- Identification RJ45
- Element Connector sets
Version
- Termination method IDC termination
- Shielding Fully shielded, 360° shielding contact
- Number of contacts 8
- Locking type PushPull
- Pack contents incl. housing with RJ45 connector, shielding and cable gland
Technical characteristics
-
Conductor cross-section
0.1 ... 0.32 mm² Stranded0.22 ... 0.32 mm² Solid
-
Conductor cross-section
AWG 27/7 ... AWG 22/7 StrandedAWG 24/1 ... AWG 22/1 Solid
- Transmission characteristics Cat. 6 Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Limiting temperature -40 ... +70 °C
- Mating cycles ≥ 750
-
Degree of protection acc. to IEC 60529
IP65IP67
- Cable diameter 4.9 ... 8.6 mm
Material properties
- Material (hood/housing) Thermoplastic
- Colour (hood/housing) Black
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
-
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
- California Proposition 65 substances Yes
-
California Proposition 65 substances
Antimony trioxideNickelNaphthalene
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 10
- Net weight 27 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140058996
- ETIM EC002636
- eCl@ss 27440114 Rectangular connector (for field assembly)
