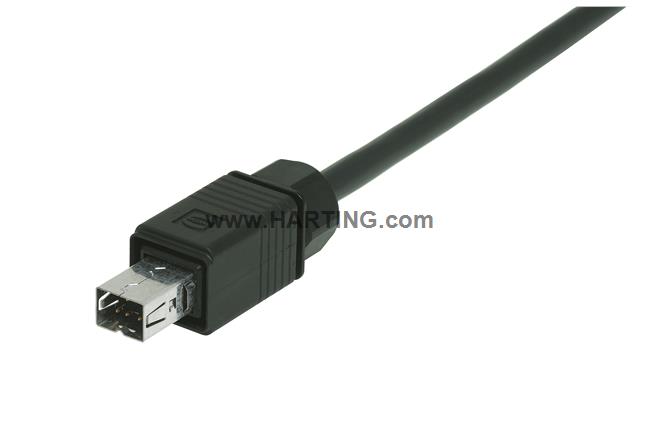

Properties Overview
Connectors
Connector Straight
Crimp termination
Rated current: 5 A
Contacts: 7
PushPull
Material: Thermoplastic
Degree of protection: IP65, IP67
This product is not orderable anymore. You can use the successor 09451459011.
Product Details
Identification
- Category Connectors
- Series HARTING PushPull (V4)
- Identification Hybrid
- Element Connector
- Specification Straight
Version
- Termination method Crimp termination
- Shielding Unshielded
- Number of contacts 7
- Number of data contacts 4
- Number of power contacts 3
- Locking type PushPull
- Pack contents With cable gland and crimp contacts
Technical characteristics
-
Conductor cross-section
AWG 26 Ethernet contactsAWG 20 Power contacts
- Rated current 5 A
- Rated voltage 48 V
- Transmission characteristics Cat. 5 Class D up to 100 MHz
-
Data rate
10 Mbit/s 100 Mbit/s
-
Degree of protection acc. to IEC 60529
IP65IP67
Material properties
- Material (hood/housing) Thermoplastic
- Colour (hood/housing) Black
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
-
California Proposition 65 substances
Antimony trioxideLeadNickelNaphthalene
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
-
Specifications
IEC 61076-3-106 Variant 4 (V4)EN 45545-2
- Approvals DNV GL
Commercial data
- Packaging size 1
- Net weight 23.6 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713140058958
- ETIM EC002636
- eCl@ss 27440114 Rectangular connector (for field assembly)
