Properties Overview

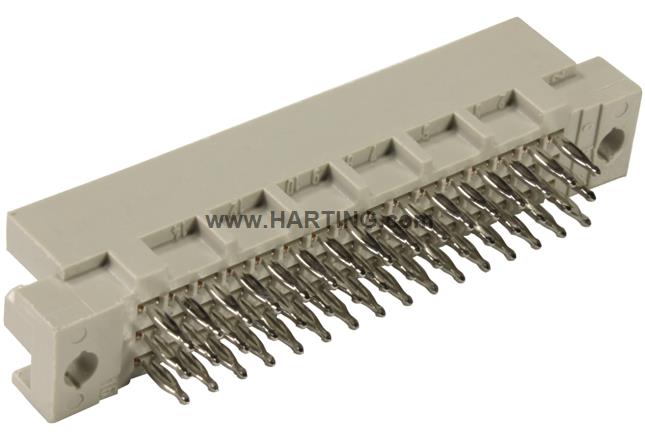

Male connector
Press-in termination
Rated current: 2 A
Contacts: 48
Straight
Copper alloy
Noble metal over Ni Mating side, Ni Termination side
Performance level: 3, acc. to IEC 60603-2
Coding: Coding with loss of contacts
PCB fixing: With fixing flange
Thermoplastic resin, glass-fibre filled
RAL 7032 (pebble grey)
This product is not orderable anymore. You can use the successor 09281486904.
Product Details
Identification
- Category Connectors
- Series DIN 41612
- Identification Type 2R
- Element Male connector
- Description of the contact Straight
- Features lead-free
Version
- Termination method Press-in termination
-
Connection type
Motherboard to daughtercardMezzaninePCB to cable
- Number of contacts 48
- Contact configuration Rows a, b and c, positions 1, 2, ... , 15, 16
- Termination length 5 mm
- Coding Coding with loss of contacts
- PCB fixing With fixing flange
Technical characteristics
- Contact rows 3
- Contact spacing (termination side) 2.54 mm
- Contact spacing (mating side) 2.54 mm
- Rated current 2 A
- Rated current Rated current measured at 20 °C, see derating curve for details
- Clearance distance ≥ 1.2 mm
- Creepage distance ≥ 1.2 mm
- Insulation resistance >1012 Ω
- Contact resistance ≤ 20 mΩ
- Limiting temperature -40 ... +105 °C upper limiting temperature limited by the pcb
- Insertion and withdrawal force ≤ 45 N
-
Performance level
3acc. to IEC 60603-2
- Mating cycles ≥ 50
- Test voltage Ur.m.s. 1 kV
- Isolation group IIIa (175 ≤ CTI < 400)
- PCB thickness ≥1.6 mm
- Hot plugging No
Material properties
- Material (insert) Thermoplastic resin, glass-fibre filled
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
-
Surface (contacts)
Noble metal over Ni Mating sideNi Termination side
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
-
California Proposition 65 substances
Antimony trioxideNickel
- Fire protection on railway vehicles EN 45545-2 (2020-08)
- Requirement set with Hazard Levels R26
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 8.5 g
- Country of origin Switzerland
- European customs tariff number 85366990
- GTIN 5713140042995
- ETIM EC002637
- eCl@ss 27460201 PCB connector (board connector)
